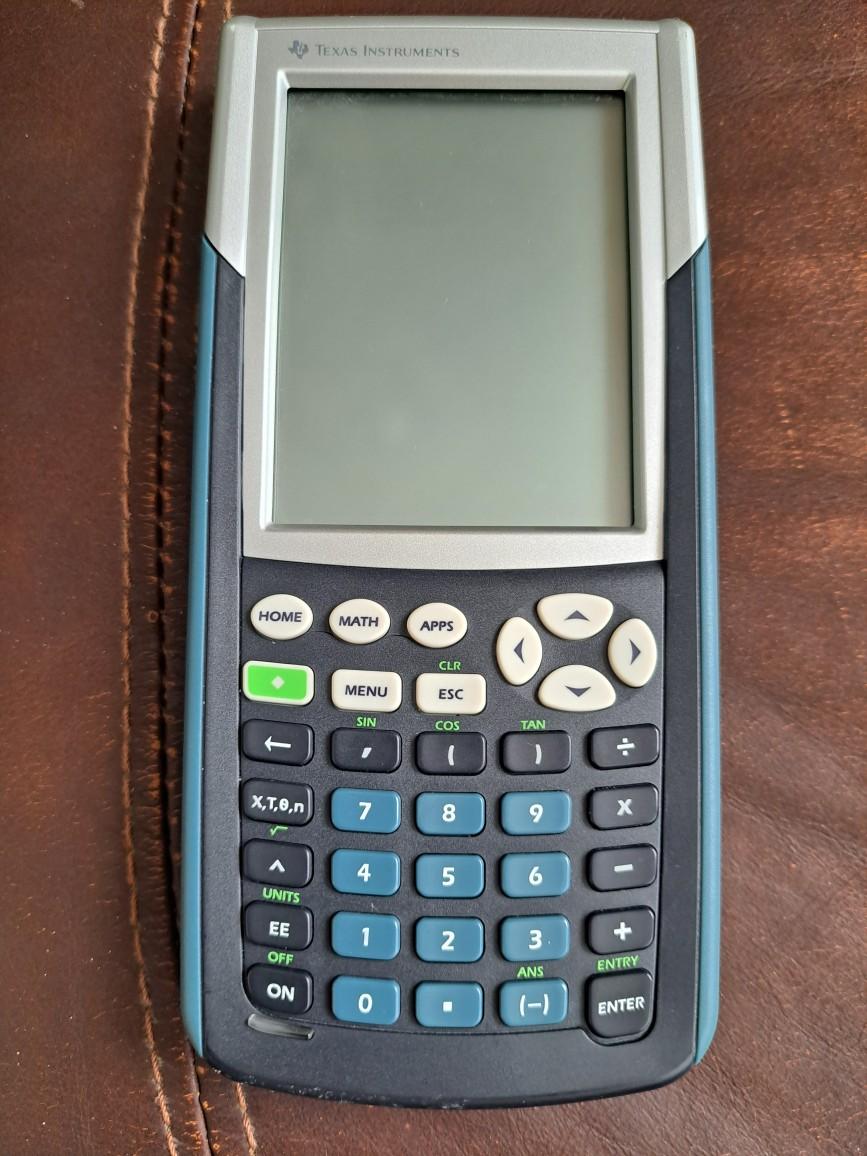

PLT SHH (1)Model: PLT-SHH1
Battery: LI-Ion 3,7 volt 1400 mah

AC adapter: AD2973
Year: 2002
Chip: CPU: TI-OMAP1509E SDRAM: Hynix HY57V281620A Flash: Toshiba TC58V64A, Fujitsu 29LV400TC
Info: The PLT SHH1 seems to be a merger of a PDA (Personal Digital Assistant) and a graphing calculator. Both the size and resolution of the LCD screen are known from PDA's of that epoch and even a Stylus is used to operate the calculator.



PLT SHH (2)

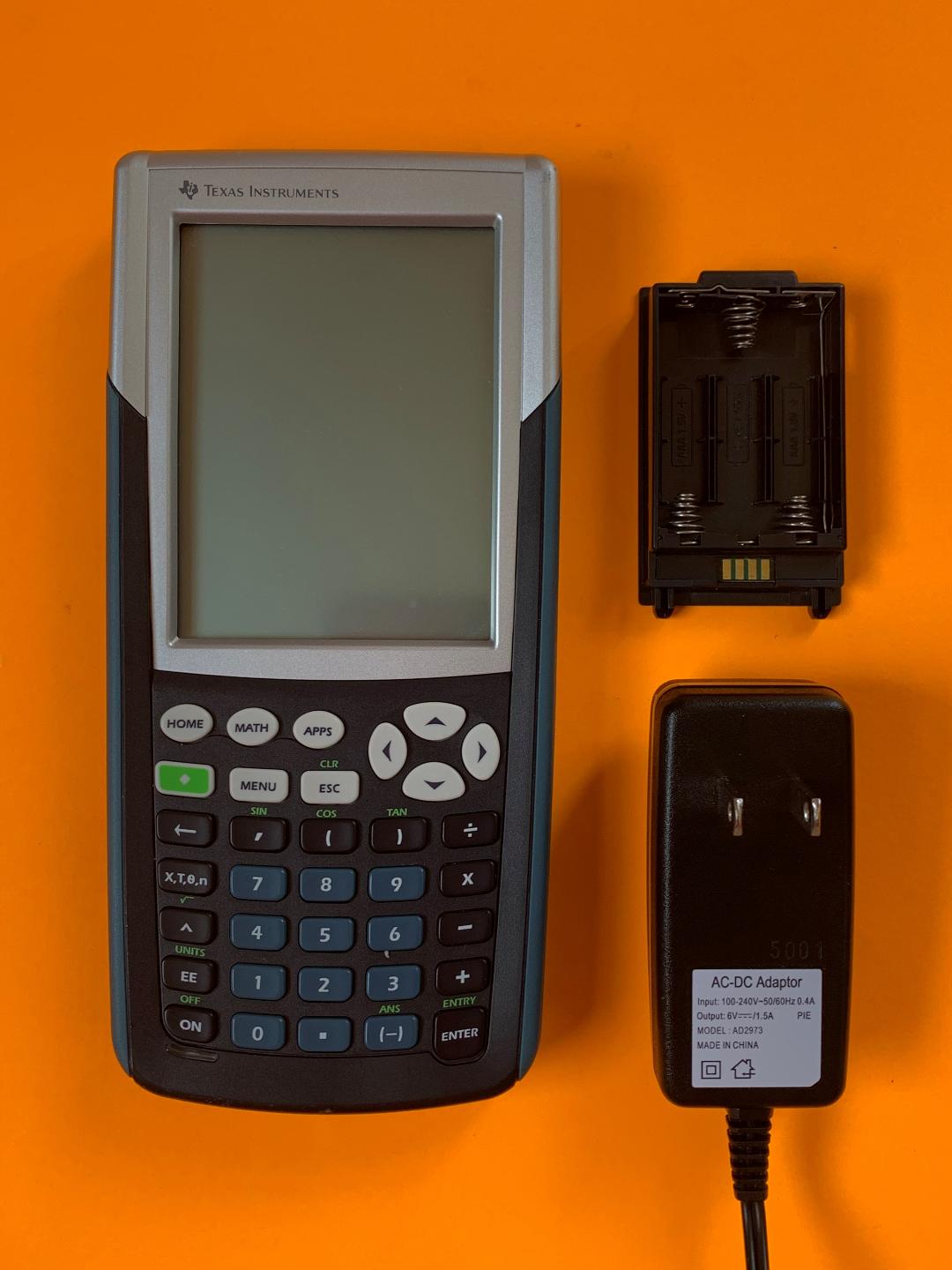

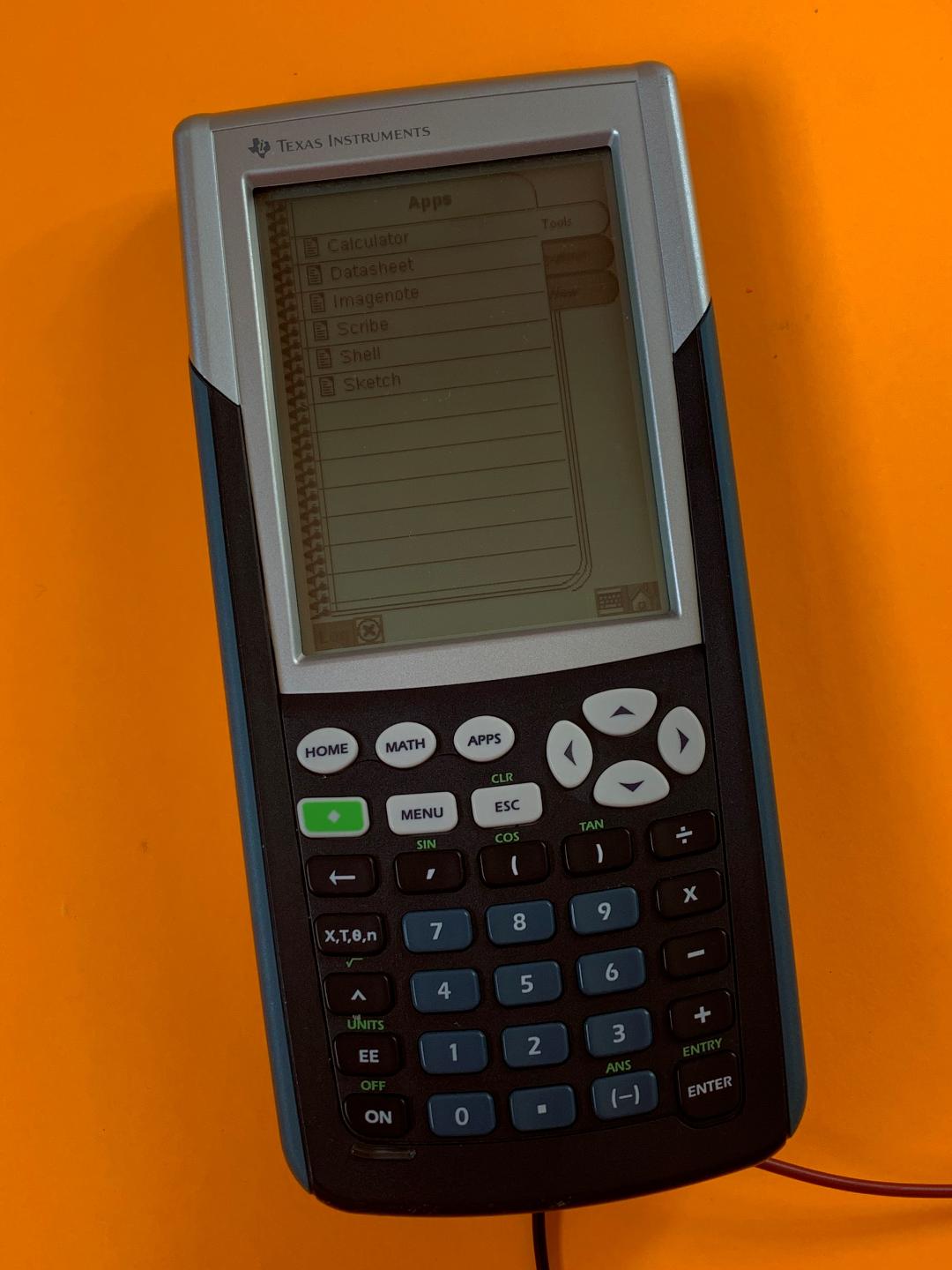

PLT SHH (3)

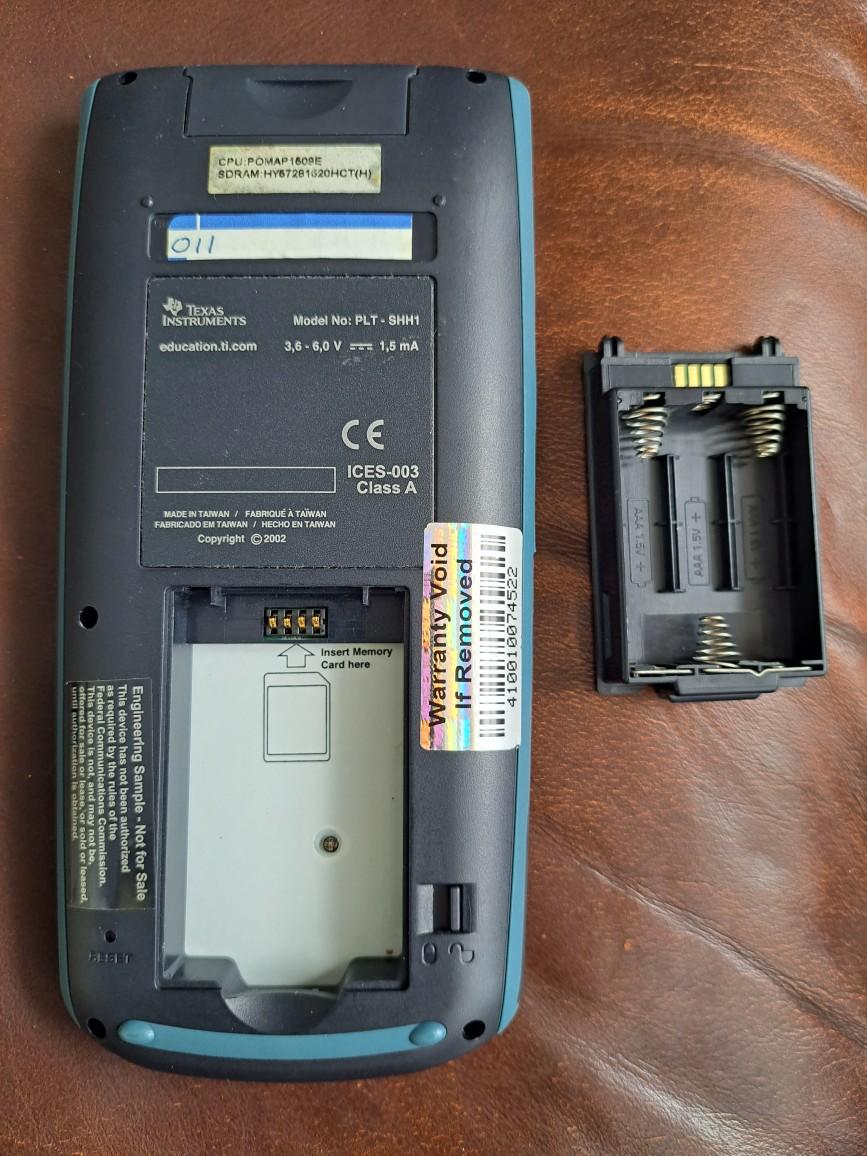

 PLT SHH (4)









Many Thanks to DATAMATH.org

Special thanks to Alexandru Balasa for the donation.
