Module

• Phasar
• Lcd Man
• module

Model: 25 (6 digit) (for Men's watch)
Battery: 2 x LR41 Face: LCD 6 digit + week  Light: NO Year: 1980 Buttons: Four buttons are used: top right, bottom right, top left, and bottom left.
Function: It displays hours, minutes, seconds, day and the month. It does not have a built-in light.
Info: This module is used in the following model TI-xxx-157


Here you can see the specific contact used by the button when pressed. Four buttons are used: one in the top right, one in the bottom right, one in the top left, and one in the bottom right. The top right button allows you to select the date and seconds, the bottom right button allows you to activate and deactivate the alarm, the top left button allows you to set the time, date, and day of the week, and the bottom left button allows you to set the alarm. The last photo shows us the alarm buzzer glued to the bottom of the lid.

• Phasar
• Lcd Man
• module

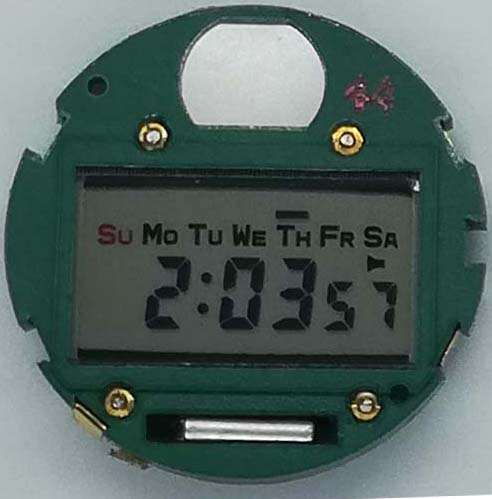

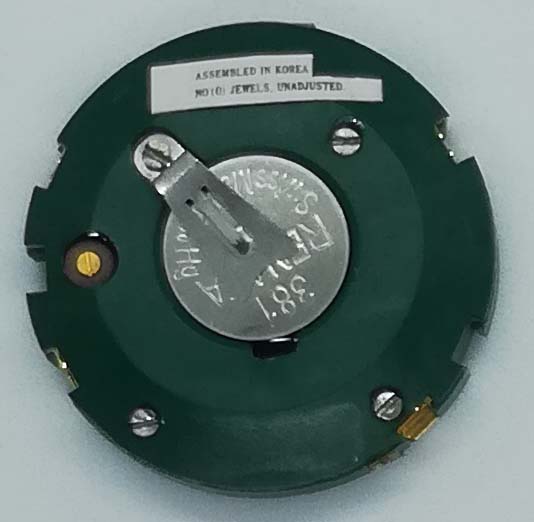

Model: 44 (for Men's watch)
Battery: 2 x LR41 Face: LCD 6 digit + week  Light: Yes Tritium Year: 1980 Buttons: Three buttons are used: top right, bottom right, top left.
Function: It displays hours, minutes, seconds, day and the month. It does not feature an integrated light, but instead uses what is known as tritium illumination.
Info: This module is used in the following model TI-801-01, TI-801-02.

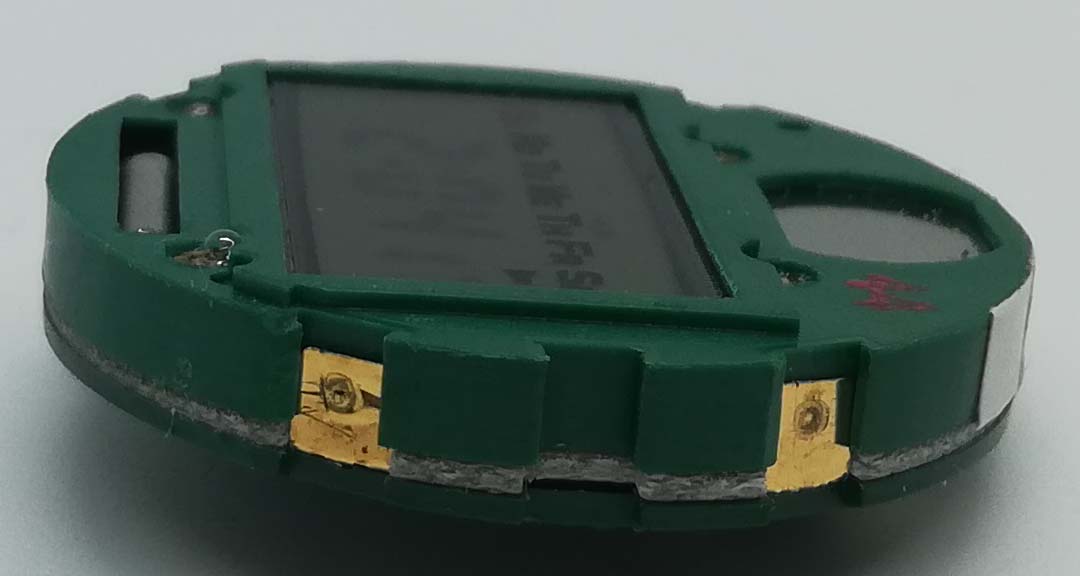

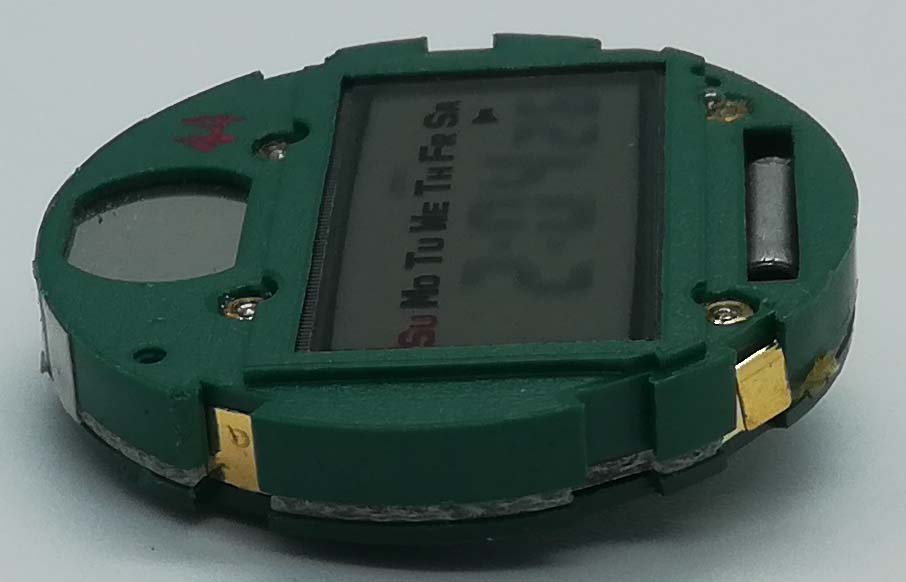

Here you can see the specific contact activated by pressing each button. There are three buttons: one at the top right, one at the bottom right, and one at the top left. The top-right button allows you to select the date and seconds, and to view the alarm; the bottom-right button is used to start or stop the stopwatch and its various functions; the top-left button is used to configure the alarm.

• Led Woman
• module

Model: 54B-2 (for Woman's watch)
Battery: 2 x AG-3 Face: LED 4 digit Light: Yes Year: 1976 ( stamped 716 ) Buttons: Two buttons are used, top right and bottom right.
Function: It displays hours, minutes, seconds, and the day of the week and the month.
Info: The original batteries are Mallory Duracell (10L125) and Eveready (UC-392). This module is used in models with code TI-600-XX , TI-700-XX

Here you can see the particular contact that is used by the button when pressed. Two buttons are used: the one on the top right to display hours, minutes, seconds, day and month, the one on the bottom right to set the hour, minutes, day and month.

• Led Man
• module

Model: 54D-1 (for Men's watch)
Battery: 2 x AG-12 Face: LED 4 digit Light: Yes Year: 1976 ( stamped 811 ) Buttons: Two buttons are used, top right and bottom right.
Function: It displays hours, minutes, seconds, and the day of the week and the month.
Info: The original batteries are Mallory Duracell (10R124,10L124) and Eveready (UC-386). This module is used in models with code TI-400-XX , TI-500XX

Here you can see the particular contact that is used by the button when pressed. Two buttons are used: the one on the top right to display hours, minutes, seconds, day and month, the one on the bottom right to set the hour, minutes, day and month.

• Lcd Woman
• module

Model: 57 (for Women's watch)
Battery:  391 Face: LCD 6 digit + week + alarm Light: NO Year: 1981 Module: Four buttons are used: top right, center right, bottom right, and bottom left.
Function: It displays hours, minutes, seconds and day of the week, and you can also set an alarm.
Info: This module is used in the following model TI-262-31, TI-262-41

Here you can see the specific contact used by the button when pressed. Four buttons are used: top right, center right, bottom right, and bottom left. The top right button is used to select the time, date, and ringtone; the center right button is used to set the various watch parameters; the bottom right button is used to activate the alarm or ringtone function; and the bottom left button is used to set the ringtone time. The last photo shows the buzzer used with the ringtone.
