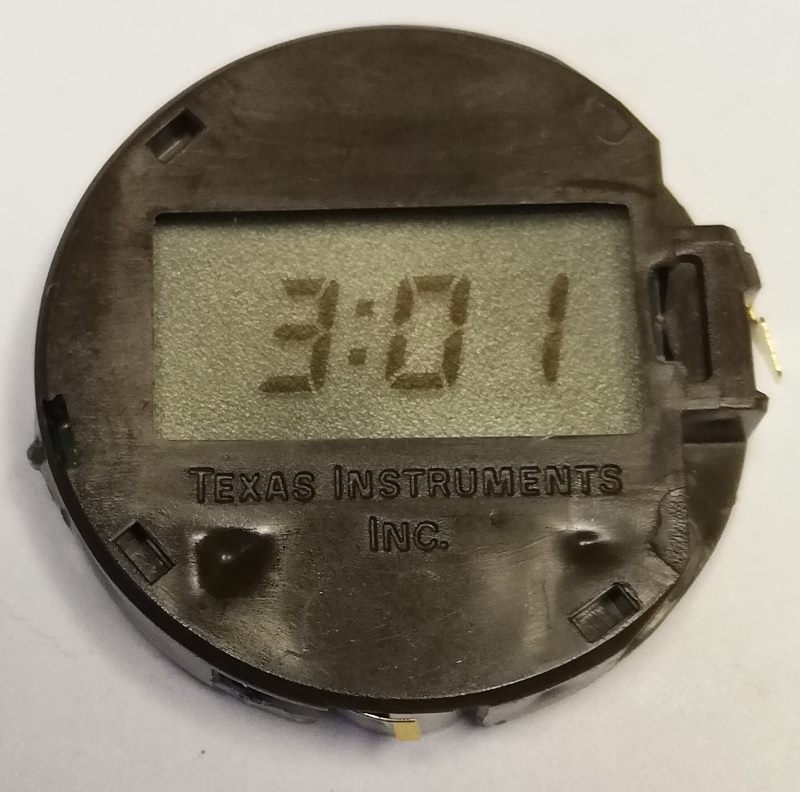

1014101 11 (1)Model: 1014101_11 (for Men's watch) Diameter: 27 mm Thickness: 6 mm
Battery:
 LR754 Face: LCD 4 digit  Light: NO
Year: 1980 Buttons: Three buttons are used, top right, center right and bottom right.
Function: Displays hours, minutes, seconds, day, and month, with a stopwatch to the second. It does not have a built-in light.
Info:
This module is used in the following model TI-562-10, TI-562-11

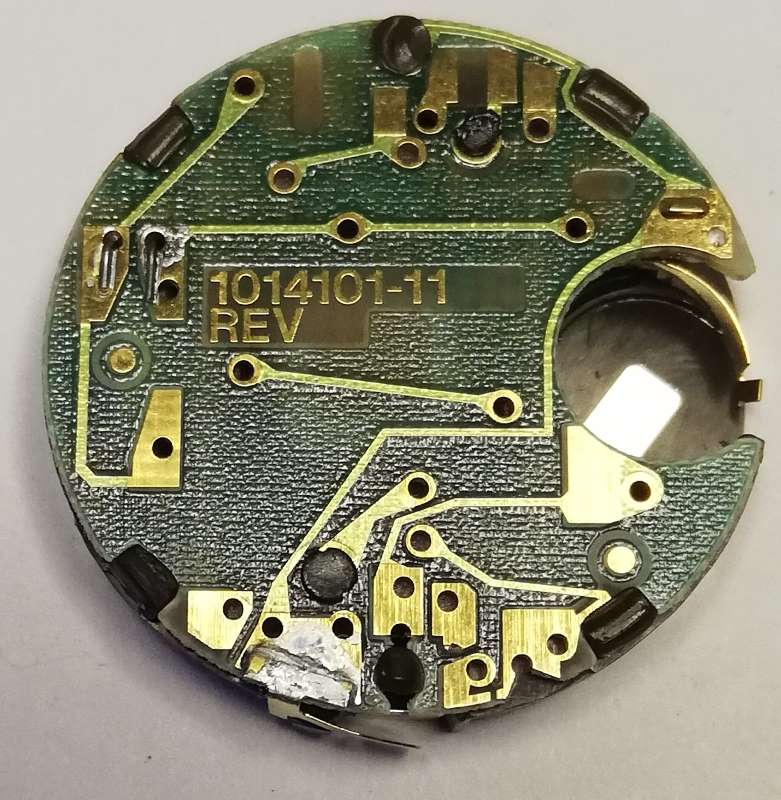

1014101 11 (2)

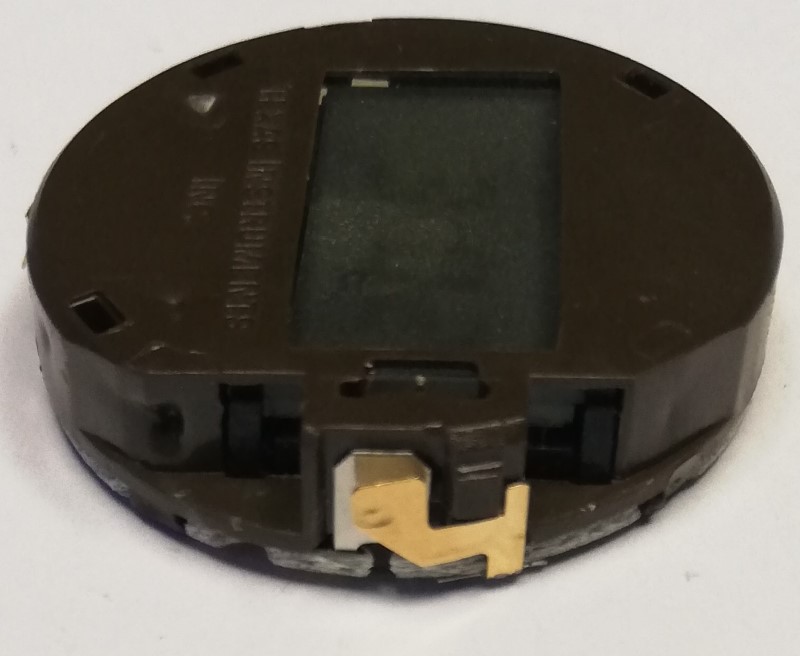

1014101 11 (3)Here you can see the specific contact used by the buttons when pressed. Three buttons are used, one in the top right, one in the center right, and one in the bottom right. The top right button allows you to select the time, date, and seconds; the center right button is used to set functions such as the time and date; while the bottom right button allows you to start a stopwatch to the second.
